Smart Break

This machine separates the composite bundle coming out of the Wipestacker into single bundles.

The width of the die-cutting machine makes it possible to obtain from the cardboard sheet several printed and die-cut poses joined together with knick points

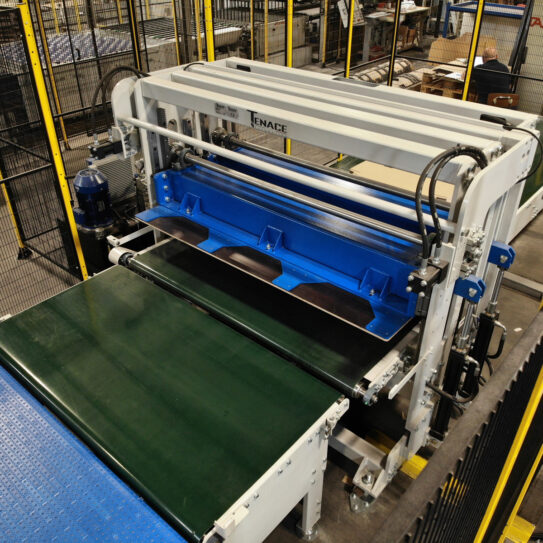

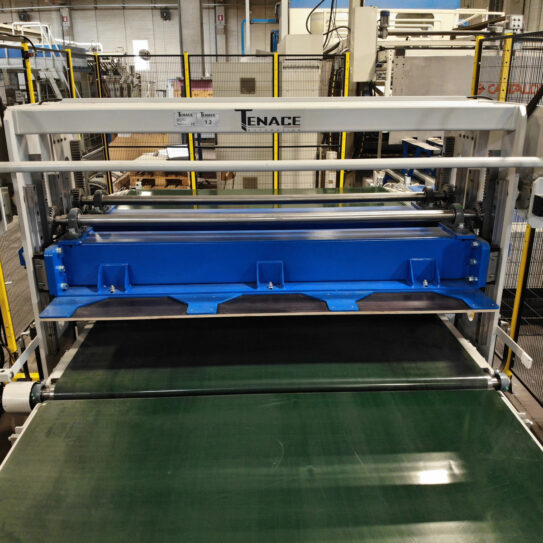

The separator is composed of N. 2 motorized PVC belts and two upper contrasting tables, movable vertically and horizontally by means of hydraulic cylinders.

The second PVC belt and the second table are equipped together with a horizontal-vertical compound movement with the second upper table which also has another horizontal movement (optional) for the separation of particular boxes, for example pizza boxes.
